MED-A2575

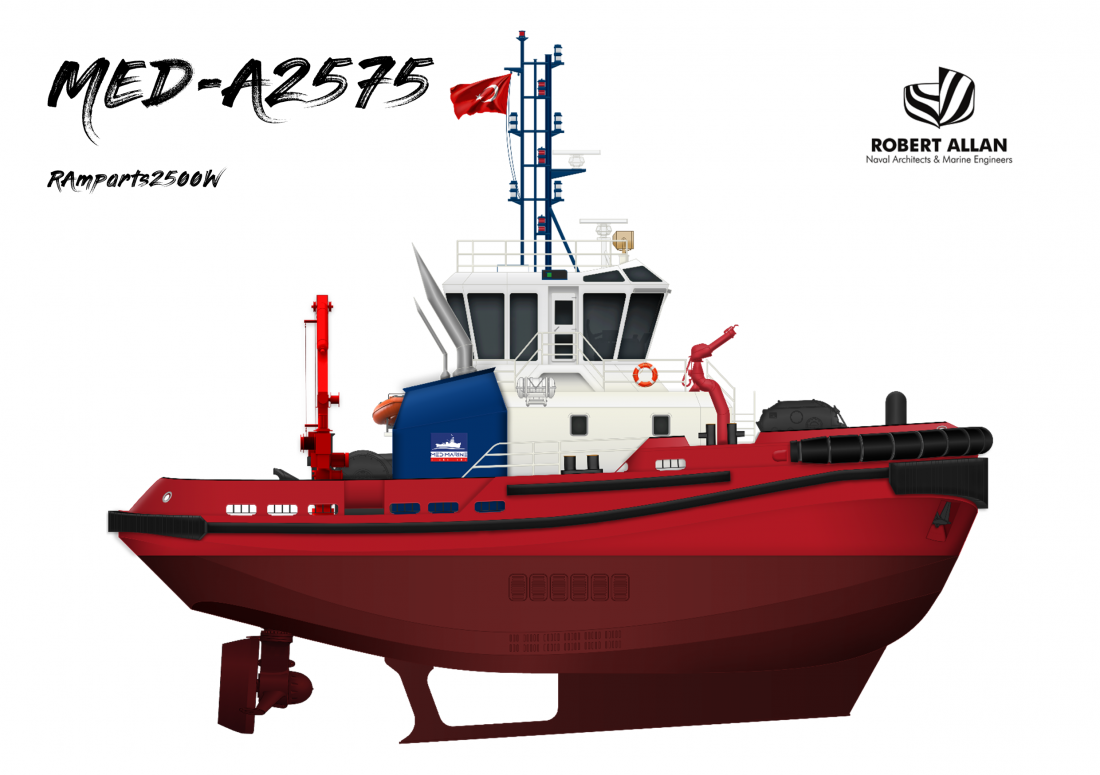

ASD 2570 TUG
ROBERT ALLAN DESIGN
RAmparts 2500W


GENERAL
DESIGN
Robert Allan Ltd. RAmparts 2500W
BASIC FUNCTIONS
Towing, pushing, mooring, fire-fighting
CLASSIFICATION
RINA C  ✠HULL, ✠MACH, ✠ AUT-UMS, TUG, FIREFIGHTING  SHIP 1 WITH WATER SPRAY, UNRESTRICTED NAVIGATION, MLC DESIGN,  INWATERSURVEY



DIMENSIONS
LENGTH O.A.
25,20 m
BEAM
12.00 m
DEPTH
4,60 m
DRAFT BASELINE
3,45 m
DRAFT EXTREME
5,75 m
GROSS TONNAGE
< 400



TANK CAPACITIES
FUEL OIL
96,40 m3
FRESH WATER
11,20 m3



PERFORMANCES
BOLLARD PULL
70 / 75 tons
SPEED
12 knots (approx.)



PROPULSION  SYSTEM

70t BP
75t BP
MAIN ENGINES
CATERPILLAR 3516C/E
CATERPILLAR 3516C/E
TOTAL POWER
2 x 2100 kW @ 1600 rpm
2 x 2100 kW @ 1600 rpm
AZIMUTHING STERN DRIVE
KONGSBERG US255S P30 FP 2600 mm DIA
KONGSBERG US255S P30 FP 2600 mm DIA
EMISSION STANDARD
IMO Tier II / III

SHAFTING
 Carbon Fiber Shaft

CLUTCH
HD slipping clutch for FIFI 1




ACCOMMODATION
Accommodation for 7 people MLC-compliant, high-quality and great comfort. Accommodation is climate-controlled and includes a captain’s cabin, an officer cabin, one single crew cabin, and two double crew cabins.



DECK EQUIPMENT
FORE TOWING WINCH

IBERCISA OR EQUIVALENT 300kN anchor combined electrically driven towing winch with double   drum combined with one warping head.

Force and speed ranges  300kN at 0-9 m/min
Brake holding force in 1st layer : 1750 kN
AFT  TOWING HOOK
DATA HIDROLIK quick release disc type
Type DTH 90-135 P SWL: 90 tonnes
ANCHORS & CHAIN
1 x 214 kg (HHP) Short link chain 20.5 mm Gr 2
CAPSTAN
Data Hidrolik electric capstan SWL:50kN
FENDERS
Cylinder, W and D type fendering of rubber



AUXILIARY  EQUIPMENT
GENERATOR SET
2 x C4.4 99 ekW 1500 rpm 50hz
FRESH WATER SYSTEM
Hydrophore System, UV filter, Heater
MACHINERY COOLING SYSTEM
Box cooler type
AIR-CONDITIONING
HEINEN HOPMAN:
Secondary AC unit in wheelhouse
Hot / Cold climate package
FIFI 1  SYSTEM

2 x M/E driven FI-FI pump, Capacity; 1400 m3/hr.
2 x Monitor: Foam/water (300/1200m3) remote   operated monitor with electric controls



NAUTICAL AND COMMUNICATION EQUIPMENT
GMDSS AREA
A1+A'
SEARCHLIGHT
2 x 230V, 2000 W (Remote Controlled)
RADAR
1 x FURUNO FAR-1518-BB
DGPS NAVIGATOR
1 x FURUNO GP-170
SATELLITE COMPASS
1 x FURUNO SC-70
SPEED LOG
1 x FURUNO DS-80
ECHOSOUNDER
1 x FURUNO FE-800
NAVTEX RECEIVER
1 x FURUNO NX-700B
AIS
1 x FURUNO FA-170
MF/HF RADIO TELEPHONE
1 x FURUNO FS-1575
VHF RADIO TELEPHONE
2 x FURUNO FM-8900S
INMARSAT MINI-C
1 x FURUNO FELCOM-19 / SSAS
EPIRB & AIS-SART
1 x JOTRON TRON TRON 60S & AIS-SART
HAND HELD VHF
2 x JOTRON TRON TRON TR30
BNWAS
1 x FURUNO BR-500
AUTOPILOT
1 x SIMRAD SIMRAD AP70 Mk2
MAGNETIC COMPASS
1 x CASSENS&PLATH EFLECTA/3
INTERCOM SYSTEM
1 x PHONTECH CIS-3100



OPTIONAL EQUIPMENT
AFT TOWING WINCH
Kraijeveld or equvalent electrically driven towing winch with single drum and one warping head.
Force and speed ranges : 300 kN at 0-9 m/min
Brake holding force in 1st layer : 1750 kN
SERVICE BOAT CRANE
GURDESAN GD.RRS-64.A
SERVICE BOAT
RIBO DSB-4.3 SR SOLAS
DECK CRANE
TOIMIL MARINE, T-7500M/2 840kg @ 8,1m reach
