Tugboats / ASD

Click here for the complete list of tugboats built by Med Marine

MED-A1620

MED-A1620
LENGTH 16,50 m
BEAM 6,00 m
MAX. BP 20 tons
MAX DRAFT 2,70 m
BP OPTIONS 20 tons
DESIGN Cintranaval Design CND-18110
MED-A3055

MED-A3055
LENGTH 30,00 m
BEAM 10,50 m
MAX. BP 57 tons
MAX DRAFT 4,75 m
BP OPTIONS 40 tons




MED-A1835

MED-A1835
LENGTH 18.00 m
BEAM 9,6 m
MAX. BP 35 tons
MAX DRAFT 3,50 m
BP OPTIONS 30 / 35 tons
DESIGN Robert Allan Ltd. RAscal 1800
MED-A2150

MED-A2150
LENGTH 21,40 m
BEAM 10,60 m
MAX. BP 50 tons
MAX DRAFT 4,30 m
BP OPTIONS 40 / 50 tons
DESIGN Robert Allan Ltd. RAscal 2100

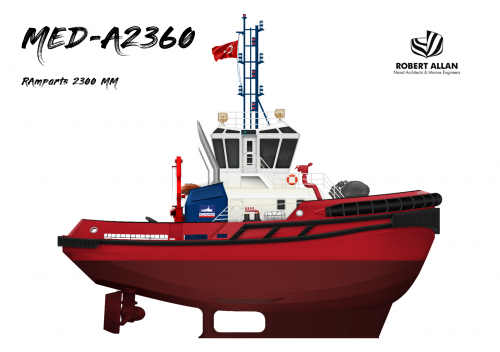

MED-A2360

MED-A2360
LENGTH 23,00 m
BEAM 10,9 m
MAX. BP 60 tons
MAX DRAFT 5,05 m
BP OPTIONS 35 / 50 / 60 tons
DESIGN Robert Allan Ltd. RAmparts 2300MM
MED-A2445

MED-A2445
LENGTH 24,39 m
BEAM 9,15 m
MAX. BP 45 tons
MAX DRAFT 4,42 m
BP OPTIONS 45 tons
DESIGN Robert Allan Ltd.

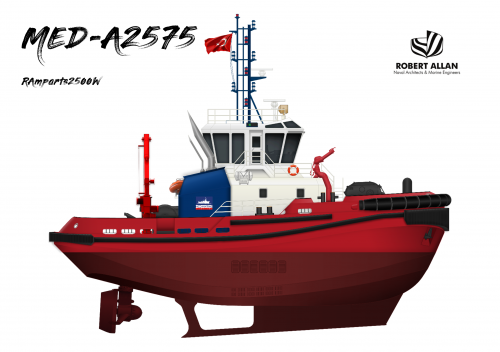

MED-A2575

MED-A2575
LENGTH 25,20 m
BEAM 12,00 m
MAX. BP 75 tons
MAX DRAFT 5,75 m
BP OPTIONS 60 / 70 / 75 tons
DESIGN Robert Allan Ltd. RAmparts 2500W

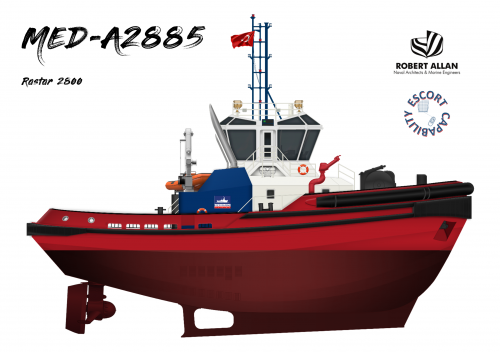

MED-A2885

MED-A2885
LENGTH 28,40 m
BEAM 13,00 m
MAX. BP 85 tons
MAX DRAFT 5,70 m
BP OPTIONS 80 / 85 tons
DESIGN Robert Allan Ltd. RAstar2800
MED-A3060-ICE

MED-A3060-ICE
LENGTH 30,00 m
BEAM 12,60 m
MAX. BP 60 tons
MAX DRAFT 5,60 m
BP OPTIONS 60 tons
DESIGN Robert Allan Ltd. TundRA 3000

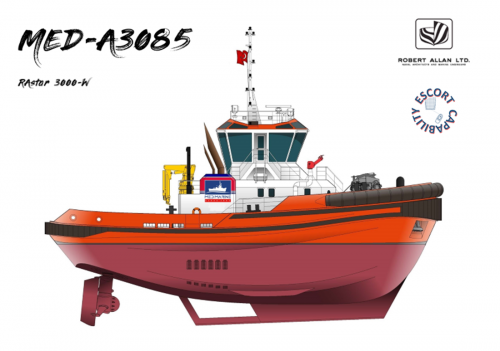

MED-A3085

MED-A3085
LENGTH 29,70 m
BEAM 13,30 m
MAX. BP 85 tons
MAX DRAFT 6,00 m
BP OPTIONS 80 / 85 tons
DESIGN Robert Allan Ltd. RAstar 3000W

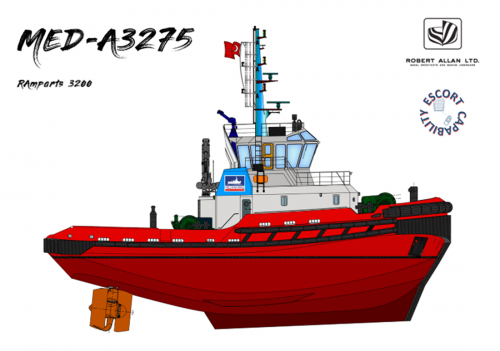

MED-A3275

MED-A3275
LENGTH 32,00 m
BEAM 11,60 m
MAX. BP 75 tons
MAX DRAFT 5,54 m
BP OPTIONS 70 / 75 tons
DESIGN Robert Allan Ltd. RAmparts 3200

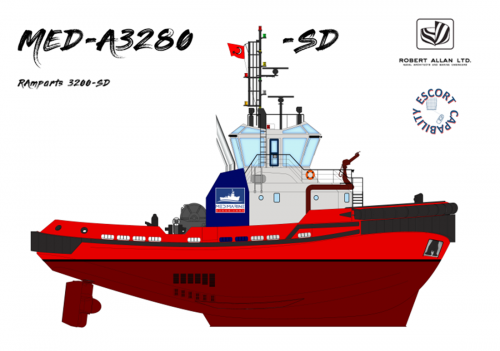

MED-A3280-SD

MED-A3280-SD
LENGTH 32,50 m
BEAM 12,60 m
MAX. BP 80 tons
MAX DRAFT 5,00 m
BP OPTIONS 80 tons
DESIGN Robert Allan Ltd. RAmparts 3200-SD
MED-A32100

MED-A32100
LENGTH 32,00 m
BEAM 13,20 m
MAX. BP 100 tons
MAX DRAFT 6,10 m
BP OPTIONS 80 / 100 tons
DESIGN Robert Allan Ltd. RAstar 3200-W
MED-A36100

MED-A36100
LENGTH 35,80m
BEAM 14,50 m
MAX. BP 100 tons
MAX DRAFT 6,60 m
BP OPTIONS 95 / 100 tons
DESIGN Robert Allan Ltd. RAstar 3600

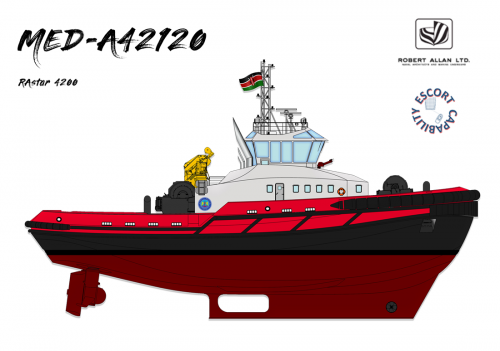

MED-A42120

MED-A42120
LENGTH 42,00 m
BEAM 16,00 m
MAX. BP 120 tons
MAX DRAFT 7,2 m
BP OPTIONS 120 tons
DESIGN Robert Allan Ltd. RAstar 4200
NO PROJECT TITLE M TBP PR CLIENTS NAME COUNTRY COMPLETION DATE
1 DILOVASI VII 18 30 TS MED MARINE TURKEY 1998
2 DILOVASI VIII 18 30 TS MED MARINE TURKEY 1998
3 DILOVASI IX 18 30 TS MED MARINE TURKEY 1999
4 DILOVASI I  18 30 TS GABON GABON 2001
5 DILOVASI II 18 30 TS GABON GABON 2001
6 DİLOVASI IV 18 30 TS GABON GABON 2001
7 KROMAN M 18 30 TS MED MARINE TURKEY 2001
8 POLİPORT M 18 30 TS MED MARINE TURKEY 2001
9 DILOVASI V 18 30 TS TINITA PORTUGAL 2003
10 DİLERPORT 18 30 TS MED MARINE TURKEY 2003
11 MED SALVOR 32 65 ASD SSS ITALY 2003
12 ROTAPORT 18 30 TS MED MARINE TURKEY 2003
13 ALTINTEL M 18 30 TS GEMPORT TURKEY 2004
14 CAPT. EMRE OMUR 32 60 ASD BBT BAHREYN 2004
15 DILOVASI III 18 30 TS SERS ITALY 2004
16 DILOVASI VI 18 30 TS SERS ITALY 2004
17 DILOVASI X 18 30 TS SERS ITALY 2004
18 BIZON 32 60 ASD LAMNALCO KUWAIT 2004
19 SHEBA 32 60 ASD CMDP MEXICO 2004
20 YENIKOY M 18 30 TS BBT BAHREYN 2004
21 MED PRIDE 30,5 41 ASD MED MARINE TURKEY 2004
22 ALEMDAR  M 18 30 TS KONINKLIJKE WAGENBORG BV NETHERLANDS 2005
23 ARPAŞ 7 25 55 ASD ARPAŞ TURKEY 2005
24 MED  DIGNITY 30,5 41 ASD LAMNALCO KUWAIT 2005
25 MED FIRAT 32 55 ASD ELIZABETH LTD MALTA 2005
26 MED MERIC 32 55 ASD ELIZABETH LTD MALTA 2005
27 MED DICLE 32 55 ASD ELIZABETH LTD MALTA 2006
28 MED EREĞLİ 24 40 ASD REMOLQUES GIJONESE SPAIN 2007
29 MED İSTANBUL 24 40 ASD REMOLQUES GIJONESE SPAIN 2007
30 REMO 32 65 ASD REPASA SPAIN 2008
31 RAMULO  32 65 ASD REPASA SPAIN 2008
32 SD SHARK 32 65 ASD KOTUG NETHERLANDS 2008
33 SD SEAL 32 65 ASD KOTUG NETHERLANDS 2008
34 SD SEAHORSE 32 65 ASD KOTUG NETHERLANDS 2008
35 TMM TEPELCATES 32 65 ASD TMM MEXICO 2008
36 TMM CUYUTLAN 32 65 ASD TMM MEXICO 2008
37 SD STRINGRAY 32 65 ASD KOTUG NETHERLANDS 2008
38 SEMA IV 22,5 40 TS MARCIA SHIPHOLDING MARSHALL ISLANDS 2009
39 CIUCIOLO 32 65 ASD GLOBECO ITALY 2009
40 SL SANA A 36 95 ASD LAMNALCO UAE 2009
41 SL ADEN 36 95 ASD LAMNALCO UAE 2009
42 SL MUKALLA 36 95 ASD LAMNALCO UAE 2009
43 SL HODEIDAH 36 95 ASD LAMNALCO UAE 2009
44 TOPAZ N 32 65 ASD HENFORD LOGISTICS HONGKONG 2009
45 NAZIM TUR 32 65 ASD TURKIYE DENIZCILIK ISL TURKEY 2009
46 RED COUGAR 32 65 ASD REPASA SPAIN 2009
47 RED PANTHER 32 65 ASD REPASA SPAIN 2009
48 STATIA STAR ( GIUCO) 32 65 ASD MPS ITALY 2010
49 CHAMPION 32 65 ASD JPS CROATIA 2010
50 BOA BRAGE 32 65 ASD BOA NORWAY 2010
51 BOA HEIMDAL 32 65 ASD BOA NORWAY 2010
52 SD SALVOR 32 65 ASD BOA NORWAY 2010
53 BOA BALDER 32 65 ASD BOA NORWAY 2010
54 EVYAP M 24 40 ASD ESEV KARDEŞLER TURKEY 2011
55 HERSEK 24 40 ASD BEIRUT PILOTAGE BEIRUT 2011
56 SD SPARTA 32 65 ASD KOTUG NETHERLANDS 2013
57 SAFİ PORT (OSMAN GAZİ) 24 45 ASD ALFONS HAKANS FINLAND 2015
58 CELTIC FERGUS 24 45 ASD MAINPORT IRELAND 2015
59 LIMAK 1 25 60 ASD MED MARINE TURKEY 2016
60 DP WORLD YARIMCA 25 60 ASD MED MARINE TURKEY 2016
61 EFESAN PORT 25 60 ASD MED MARINE TURKEY 2016
62 EKİNCİLER PORT 25 60 ASD MEDMARINE TURKEY 2016
63 PRAIA MARIA 25 60 ASD ENAPOR CAPE VERDE 2016
64 MED IZMIT 25 60 ASD MED MARINE TURKEY 2016
65 MED YARIMCA 25 70 ASD NAVIMAR MEXICO 2017
66 ARPAS X 25 70 ASD ARPAŞ TURKEY 2017
67 CLAUS 32 70 ASD J.JOHANNSEN & SOHN GERMANY 2018
68 CANO CRISTALES 32 70 ASD COLTUGS COLOMBIA 2018
69 MED XXIV 23 50 ASD MED MARINE TURKEY 2018
70 MED XXV 23 50 ASD MED MARINE TURKEY 2018
71 ULUDAG Y 23 50 ASD GEMPORT TURKEY 2018
72 MED XXVII 23 50 ASD MED MARINE TURKEY 2018
73 MED XXVIII 23 50 ASD MED MARINE TURKEY 2018
74 MED XXIX 23 50 ASD MED MARINE TURKEY 2018
75 VITTORIOSA 30 80 ASD RIUNITI GROUP ITALY 2019
76 SAAM ITZA 23 60 ASD SAAM GUATEMALA GUATEMALA 2019
77 TAREEF 1 23 60 ASD ABU DHABI PORTS UAE 2019
78 EREGLI 76 18 30 ASD TBA TBA 2020
79 EREGLI 77 18 30 ASD TBA TBA 2020
80 EREGLI 82 23 60 ASD ASYA PORT TURKEY 2020
81 EREGLI 83 25 75 ASD CAFIMAR ITALY 2020
82 EREGLI 84 30 60 ASD SVITZER DENMARK IN PROGRESS
83 EREGLI 85 30 60 ASD SVITZER DENMARK IN PROGRESS
84 EREGLI 86 25 70 ASD RIUNITI GROUP ITALY 2020
85 EREGLI 90 30 80 ASD TBA TBA IN PROGRESS
86 EREGLI 91 32 75 ASD NCSC ISRAEL 2020
87 EREGLI 92 30 55 ASD TBA TBA IN PROGRESS
88 EREGLI 93 30 55 ASD TBA TBA IN PROGRESS
89 EREGLI 94 42 120 ASD KPA KENYA  IN PROGRESS
90 EREGLI 78 25 70 ASD REMOLQUES GIJONESES SA SPAIN IN PROGRESS
91 EREGLI 79 23 60 ASD TBA TBA IN PROGRESS
92 EREGLI 80 23 60 ASD SVITZER DENMARK 2020
