GENERAL
|
|
|
DESIGN
|

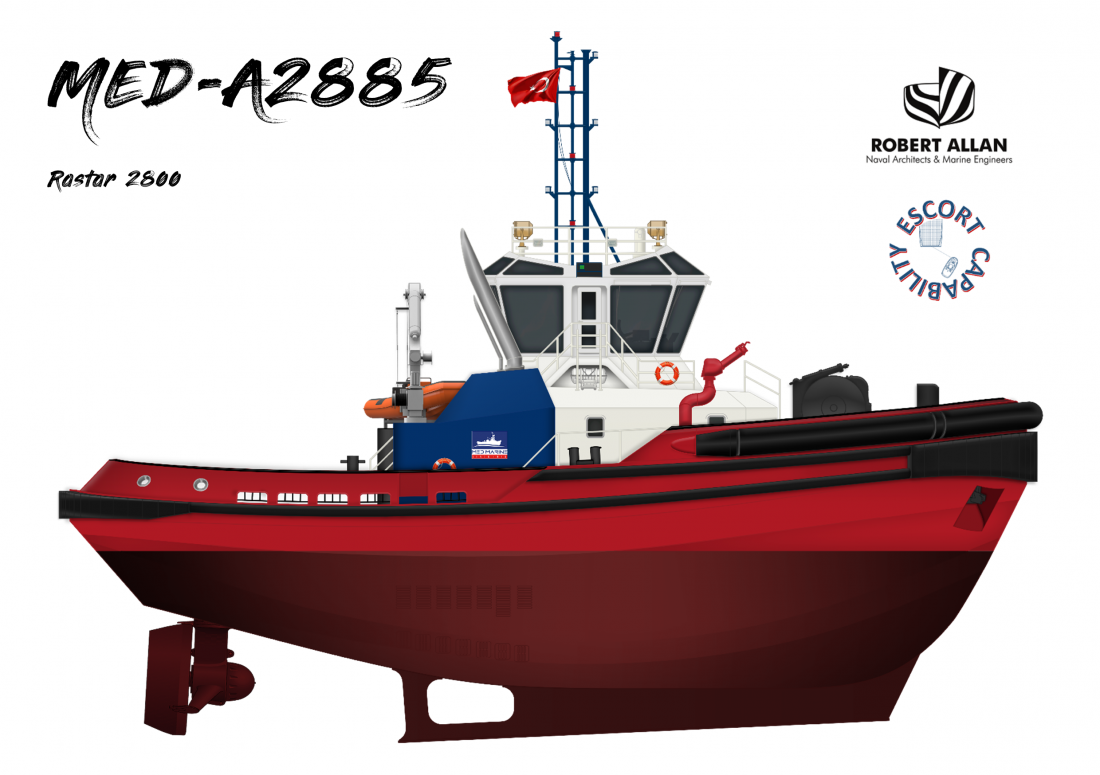

Robert Allan Ltd. RAstar2800
|
|
BASIC FUNCTIONS
|
Towing, pushing, escorting, mooring, fire-fighting
|
|
CLASSIFICATION
|
RINA C ✠ HULL ✠ MACH
ESCORT TUG – FIRE-FIGHTING SHIP 1 – WATER-SPRAYING OIL RECOVERY SHIP – FLASH POINT > 60OC, UNRESTRICTED NAVIGATION, AUT UMS – AUT PORT – SYS NEQ - COMF NOISE C – COMF VIB C, GREEN STAR 3 – INWATERSURVEY |
|
|
|
|
DIMENSIONS
|
|
|
LENGTH O.A.
|
28,40 m
|
|
BEAM
|
13,00 m
|
|
DEPTH
|
5,40 m
|
|
DRAFT BASELINE
|
4,10 m
|
|
DRAFT EXTREME
|
5,70 m
|
|
GROSS TONNAGE
|
< 500
|
|
|
|
|
|
|
|
TANK CAPACITIES
|
|
|
FUEL OIL
|
152,00 m3
|
|
FRESH WATER
|
49.00 m3
|
|
|
|
|
PERFORMANCES
|
|
|
BOLLARD PULL
|
75 tons
|
|
SPEED
|
12 knots (approx.)
|
|
|
|
|
PROPULSION SYSTEM
|
|
|
MAIN ENGINES
|
CATERPILLAR 3516C/E 2x2100 kW @ 1600 rpm
|
|
EMISSION STANDARD
|
IMO Tier II (Tier III Optional)
|
|
AZIMUTHING STERN DRIVE
|
KONGSBERG US 255S FP with slipping clutch for FIFI 1
|
|
PROPELLERS
|
2800 mm diameters
|
|
SHAFTING
|
Carbon Fiber Shaft
|
|
|
|
|
ACCOMMODATION
|
|
|
Accommodation for 8 people MLC-compliant high-quality and great comfort accommodation is climate-controlled and includes a master cabin, an officer cabin, and three double crew cabins.
|
|
|
|
|
|
DECK EQUIPMENT
|
|
|
FORE TOWING WINCH
|
KONGSBERG ETWH 2500/720 hydraulic escort towing winch with two rope drums
Brake Holding Load @ 1st Layer: 250 tonnes
Recovery Nom. pull / low speed /1st layer : 72t / 11m/min
Nom pull / high speed /1st layer : 14t / 49m/min
Rendering Nom. pull / low speed /1st layer : 101t / -48m/min
Nom pull / high speed /1st layer : 23t / -91m/min
|
|
AFT TOWING WINCH
|
KONGSBERG TWH 2000/300 hydraulic towing winch with one single rope drum with band brake
Brake Holding Load @ 1st Layer: 200 tonnes
Recovery Nom. pull / low speed /1st layer :31t / 13m/min
Nom pull / high speed /1st layer : 6t / 57m/min
|
|
AFT TOWING HOOK
|
DATA HIDROLIK quick release disc type
Type DTH 90-135 P SWL: 90 tonnes
|
|
TOWING PINS
|
DATA HIDROLIK
DTP 12SH
|
|
ANCHORS & CHAIN
|
2 x 495 kg (HHP) & 20,5 mm Gr 3
|
|
FENDERS
|
Cylinder, W and D type fendering of rubber
|
|
|
|
|
AUXILIARY EQUIPMENT
|
|
|
GENERATOR SET
|
2 x CATERPILLAR C4.4 99 ekW 1500 rpm 50hz
|
|
FRESH WATER SYSTEM
|
Hydrophore System, UV filter, Heater
|
|
MACHINERY COOLING SYSTEM
|
Box cooler type
|
|
AIR-CONDITIONING
|
HEINEN HOPMAN:
Secondary AC unit in wheelhouse
Hot / Cold climate package
|
|
FIFI 1 SYSTEM
|
2 x M/E driven FI-FI pump, Capacity; 1400 m3/hr.
2 x Monitor: Foam/water (300/1200m3) remote operated monitor with electric controls
|
|
|
|
|
NAUTICAL AND COMMUNICATION EQUIPMENT
|
|
|
GMDSS AREA
|
A1 + A2
|
|
SEARCHLIGHT
|
2 x 230 V, 2000 W (Remote Controlled)
|
|
X-BAND ARPA RADAR
|
1 x FURUNO FAR-1518-BB
|
|
DGPS NAVIGATOR
|
1 x FURUNO GP-170
|
|
SATELLITE COMPASS
|
1 x FURUNO SC-70
|
|
SPEED LOG
|
1 x FURUNO DS-80
|
|
ECHOSOUNDER
|
1 x FURUNO FE-800
|
|
NAVTEX RECEIVER
|
1 x FURUNO NX-700B
|
|
AIS
|
1 x FURUNO FA-170
|
|
MF/HF RADIO TELEPHONE
|
1 x FURUNO FS-1575
|
|
VHF RADIO TELEPHONE
|
2 x FURUNO FM-8900S
|
|
INMARSAT MINI-C
|
1 x FURUNO FELCOM-19 / SSAS
|
|
EPIRB & AIS-SART
|
1 x JOTRON TRON TRON 60S & AIS-SART
|
|
HAND HELD VHF
|
2 x JOTRON TRON TRON TR30
|
|
BNWAS
|
1 x FURUNO BR-500
|
|
AUTOPILOT
|
1 x SIMRAD SIMRAD AP70 Mk2
|
|
MAGNETIC COMPASS
|
1 x CASSENS&PLATH EFLECTA/3
|
|
INTERCOM SYSTEM
|
1 x PHONTECH CIS-3100
|
| OPTIONAL EQUIPMENT | |
| DECK CRANE | |
| RESCUE BOAT CRANE & RESCUE BOAT | |
