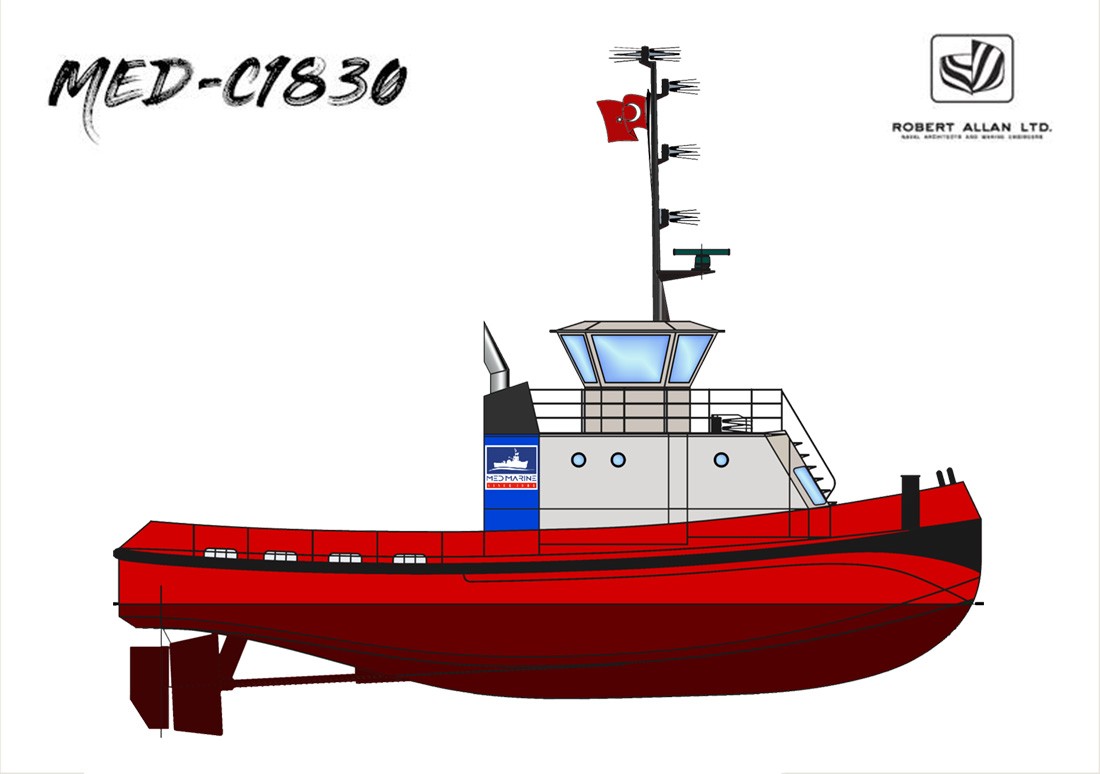

MED-C1830

1830 CONVENTIONAL TUG
ROBERT ALLAN DESIGN


GENERAL
DESIGN Robert Allan Ltd.
BASIC FUNCTIONS Towing, pushing, mooring, fire-fighting
CLASSIFICATION  RINA C  ✠ TUG, FIRE-FIGHTING SHIP-E, UNRESTRICTED NAVIGATION

DIMENSIONS
LENGTH O.A. 18,28 m
BEAM  6,70 m
DEPTH  2,48 m
DRAFT DESIGNED 3,20 m
MAX. HEIGHT FROM KEEL 10,00 m
GROSS TONNAGE < 200

TANK CAPACITIES
FUEL OIL  22,40 m3
FRESH WATER 16,42 m3
SEWAGE  16,42 m3
OILY WATER  0,40 m3

PERFORMANCES
BOLLARD PULL 30 tons (minimum)
SPEED 11 knots (approx.)

PROPULSION  SYSTEM
MAIN ENGINES 2 x CATERPILLAR 3508
TOTAL POWER 2 x 716 kW @ 1800 rpm
PROPELLER 2 x 4 Blades Solid Propeller (Ni-Al-Bronze)
GEARBOX REINTJES WAF
REDUCTION RATIO 5:1
SHAFTING Steel

ACCOMMODATION
Accommodation for 4 people, high-quality and great comfort. Accommodation is climate-controlled and includes  two double crew cabins.

DECK EQUIPMENT
TOWING HOOK DATA Quick Release With Air Dta 30-60
ANCHORS & CHAIN 2 x 160kg Anchor
2 x 55 m 14mm Gr3 Chain
ANCHOR CAPSTAN DATA Anchor Windlass
FENDERS All around D fenders and Tire fenders

AUXILIARY  EQUIPMENT
GENERATOR SET 1 x CAT3054 - 37 kW
MACHINERY COOLING SYSTEM Tube Cooler
AIR-CONDITIONING Split A/C Unit
2 x 12000 BTU
FIFI E  SYSTEM  1 x Standart Centrifugal Pump Capacity 35 m³/h

NAUTICAL AND COMMUNICATION EQUIPMENT
GMDSS A1 AREA
RADAR 1 x JRC JMA-1100
GPS 1 x JRC JMA-1100
AIS CLASS  1 x IMARINE I-AIS TBCS KLAS BCS
COMPASS Standart Compass
INTERCOM I-COM IC-M323 VHF
VHF SAILOR RT2048 VHF
ECHO SOUNDER 1 x JRC
TALK-BACK 1 x Phontech CIS 3100
