GENERAL
|
|
|
DESIGN
|

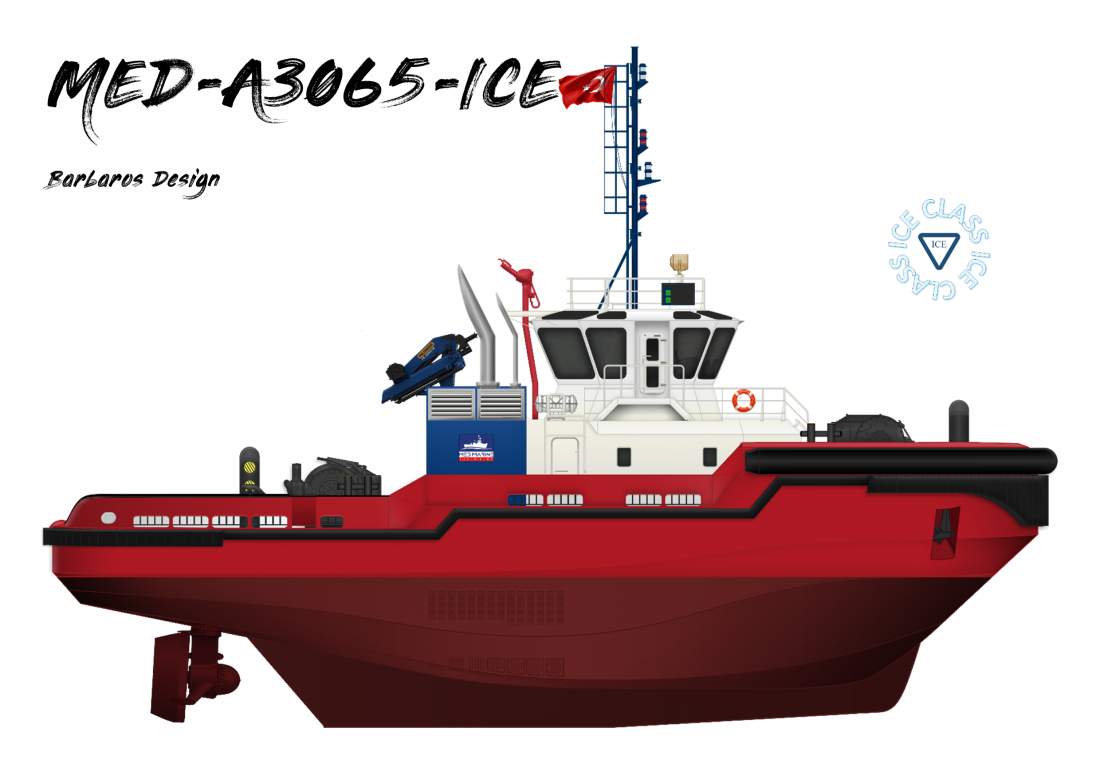

Barbaros Design
|
|
BASIC FUNCTIONS
|
Towing, pushing, mooring, fire fighting
|
|
CLASSIFICATION
|
BV ✠HULL, ✠MACH, TUG, COASTAL AREA, ✠AUT-UMS, ICE CLASS 1A SUPER
|
|
|
|
|
DIMENSIONS
|
|
|
LENGTH O.A.
|
30,00 m
|
|
BEAM
|
10,50 m
|
|
DEPTH
|
4,85 m
|
|
DRAFT BASELINE
|
3,55 m
|
|
DRAFT EXTREME
|
4,75 m
|
|
GROSS TONNAGE
|
< 400
|
|
|
|
|
TANK CAPACITIES
|
|
|
FUEL OIL
|
75,10 m3
|
|
FRESH WATER
|
10,40 m3
|
|
|
|
|
PERFORMANCES
|
|
|
BOLLARD PULL
|
60 tons
|
|
SPEED
|
12 knots (approx.)
|
|
|
|
|
PROPULSION SYSTEM
|
|
|
MAIN ENGINES
|
2x CAT 3512E 1901kW @ 1800rpm
|
|
EMISSION STANDARD
|
IMO Tier III
|
|
AZIMUTHING STERN DRIVE
|
SCHOTTEL SRP 460 FP
|
|
PROPELLERS
|
2400 mm diameters
|
|
SHAFTING
|
Carbon Shaft
|
|
|
|
|
ACCOMMODATION
|
|
|
Accommodation for 8 people, MLC compliant, high-quality and great comfort. Accommodation is climate-controlled and includes a captain’s cabin, an officer cabin, and three double crew cabins with central heating.
|
|
|
|
|
|
DECK EQUIPMENT
|
|
|
FORE TOWING WINCH
|
DATA HIDROLIK OR EQUIVALENT – 350 kN hydraulic anchor combined towing winch with two chain wheels, two towing drums and one warping head. Nominal force 1st layer: 350 kN
Drum brake holding force 1st layer : 1100 kN
Nominal speed 1st layer : 0-15 m/min
|
|
AFT TOWING WINCH
|
Kraijeveld or equvalent, HTW – 350 kN hydraulic towing winch with one towing drum.
Nominal force 1st layer: 350 kN
Drum brake holding force 1st layer : 1100 kN
Nominal speed 1st layer : 0-12 m/min
|
|
AFT TOWING HOOK
|
DATA HIDROLIK quick release disc type
Type: DTH 70-130P, SWL: 70t
|
|
TOWING PIN
|
DATA HIDROLIK hydraulic towing pin
Type: DTP 12 SH, SWL 50t @ 90o
|
|
ANCHORS & CHAIN
|
2 x 495kg (HHP) & 20.5 mm Gr3
|
|
FENDERS
|
Cylinder, W and D type fendering of rubber
|
|
|
|
|
AUXILIARY EQUIPMENT
|
|
|
GENERATOR SET
|
2 x VOLVO PENTA 116ekW @ 1500rpm 50Hz
|
|
FRESH WATER SYSTEM
|
Hydrophore System, UV filter, Heater
|
|
MACHINERY COOLING SYSTEM
|
Box cooler type
|
|
AIR-CONDITIONING
|
HEINEN HOPMAN:
Secondary AC unit in wheelhouse Hot / Cold climate package |
|
FI-FI SYSTEM
|
1 x M/E driven FI-FI pump, Capacity: 1500 m3/hr.
2 x Monitor: Foam/water (150/600m3) remote operated monitor with electric controls
|
|
|
|
|
NAUTICAL AND COMMUNICATION EQUIPMENT
|
|
|
GMDSS AREA
|
A1+A2
|
|
SEARCHLIGHT
|
2 x 230 V, 2000 W
|
|
RADAR
|
1 x KODEN MDC792P
|
|
ECDIS
|
1 x MARIS MK15 19”
|
|
GPS & GPS COMPASS
|
1 x KODEN KGC300
|
|
MAGNETIC COMPASS
|
1 x JOHN LILLEY & GILLIE MK2020
|
|
SPEED LOG / ECHOSOUNDER
|
1 x NORTHEN SOLUTION EMES60-S
|
|
NAVTEX SYTEM
|
1 x SAILOR 6391
|
|
AIS
|
1 x KODEN KAT330
|
|
MF/HF RADIO TELEPHONE
|
1 x ICOM GM800
|
|
SSAS SYSTEM
|
1 x SAILOR 6120
|
|
EPIRB & SART
|
1 x OCEAN SIGNAL E100 / S100
|
|
GMDSS VHF
|
1 x ICOM GM600 CLASS A
|
|
GMDSS HANDHELD VF
|
2 x OCEAN SIGNAL V100VHF
|
|
BNWAS
|
1 x LILLEY & GILLIE
|
|
AUTOPILOT
|
1 x SIMRAD AP70 Mk2
|
|
|
|
|
OPTIONAL
|
|
|
DECK / SERVICE BOAT CRANE
|
PALFINGER, PK12000MA, SWL:1,2 ton @ 8,1 m
|
|
SERVICE BOAT
|
RIBO DSB 4.3 SR/SOLAS
|
