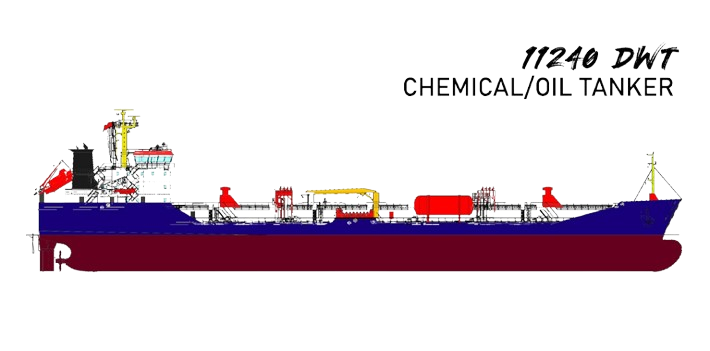

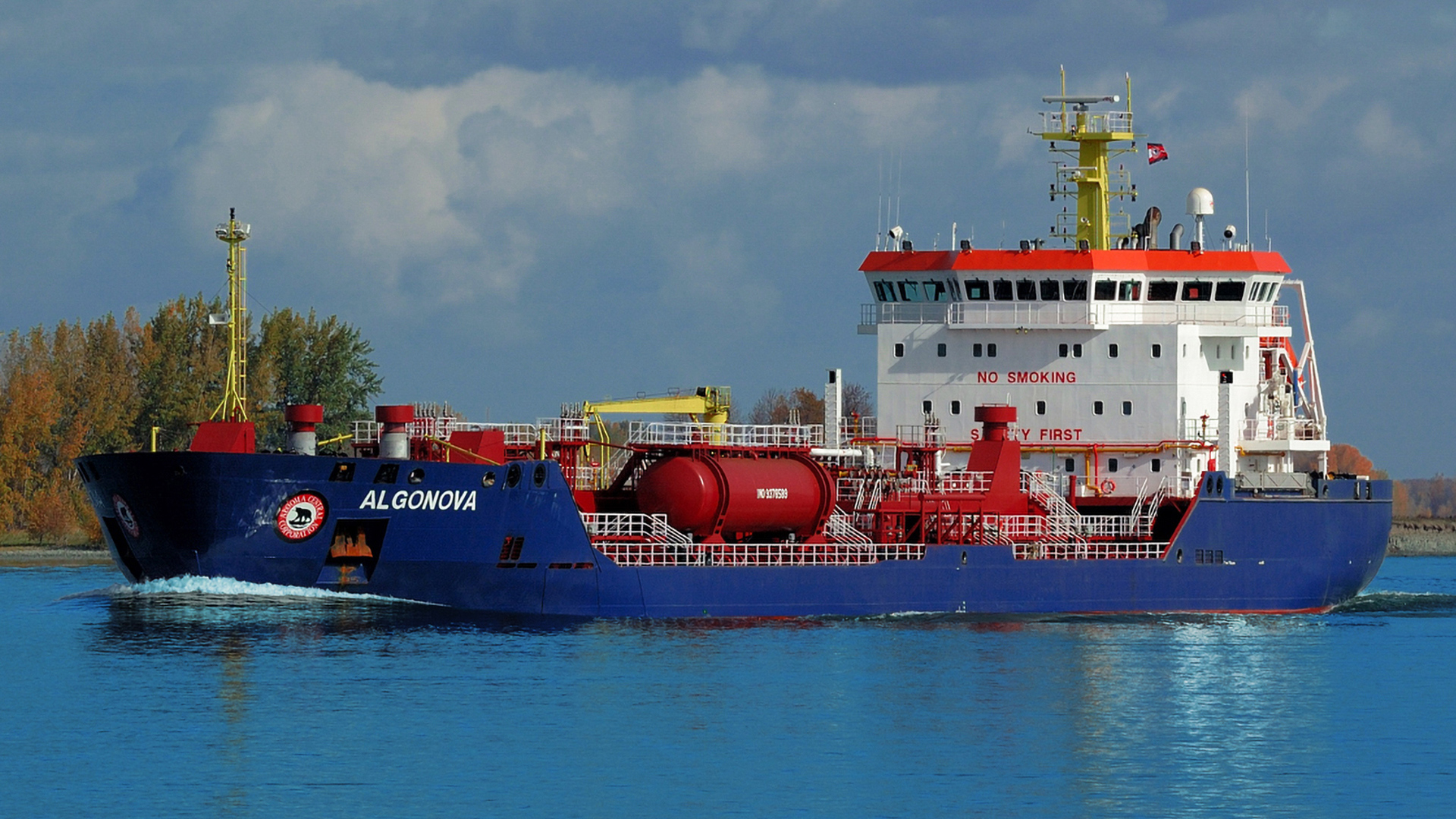

11.240 DWT
General
Yard Name
: Ereğli Shipyard
Basic Functions
: Chemical / Oil Tanker
Classification
: BUREAU VERITAS ✠ OIL AND CHEMICAL TANKER ESP, IMO TYPE II, UNRESTRICTED NAVIGATION, ICE 1A, CLEAN SEA, CLEAN AIR, AUT-UMS, AVM-APS, IG, MON-SHAFT, INWATERSURVEY, CARGO CONTROL, VCS
MAIN PARTICULARS (Approx.)
Length Overall
: 129,85 m
LENGTH BETW. PERP.
: 124,65 m
Breath, MLD
: 19,80 m
Depth, MLD
: 9,95 m
DRAUGHT, DESIGN
: 7,45 m
Deadweight
: 11.240 DWT
Service Speed
: 13,0 knots
Complement
: 16+1
MACHINERY
Main Engine
: MAK/9M32C
Power / RPM
: 4500 kW at 600 rpm
Specific Fuel Consumption
: abt.177g/kWh at 85% output
CONTROLLABLE PITCH PROPELLER
: abt.155 rpm
Bow Thruster (KW)
: 500 kW
Power Supply Diesel Generators
: 590kW at 1800 rpm
Emergency Diesel Generator
: 150kW at 1800 rpm
SHAFT ALTERNATOR
: 1500kW at 1800 rpm
Voltage & Frequency of Vessel
: 440V & 60Hz
Cargo Pumping System
: 14 FRAMO Cargo pumps at 335 m3/hr each
TANK CAPACITIES (Approx.)
Cargo Tank 1 P & STB
: 1.490cbm
Cargo Tank 2 P & STB
: 1.779cbm
Cargo Tank 3 P & STB
: 1.845cbm
Cargo Tank 4 P & STB
: 1.843cbm
Cargo Tank 5 P & STB
: 1.844cbm
Cargo Tank 6 P & STB
: 1.839cbm
CARGO TANK 7 P & STB
: 1.633cbm
SLOP TANK P & S
: 247cbm
Total
: 12.520cbm
Other Tank Capacities (Approx.)
Heavy Fuel Oil
: 546cbm
Marine Diesel Oil
: 123cbm
Lubricating Oil
: 26cbm
Fresh Water
: 240cbm
BALLASTING / HEELING WATER
: 4.945cbm
CRUISING RANGE
: 10.000 sm
