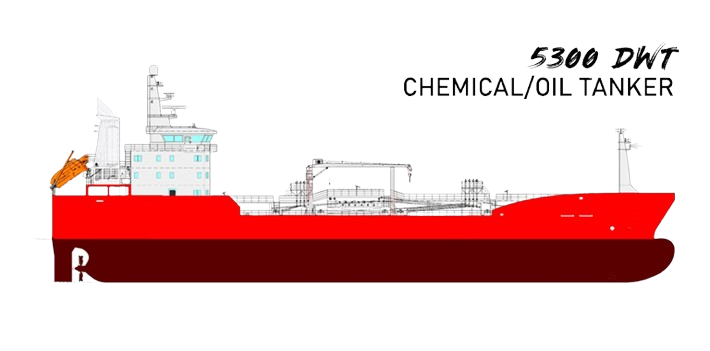

5300 DWT STST
General
Yard Name
: Ereğli Shipyard
Basic Functions
: Chemical / Oil Tanker
Classification
: BUREAU VERITAS ✠ HULL ✠ MACHINERY, OIL&CHEMICAL TANKER ESP, UNRESTRICTED NAVIGATION,*AUT-UMS, CLEAN SHIP, MON SHAFT, ICE CLASS 1A, IG, MANOVR, AVM-APS, IMO II, VCS, INWATERSURVEY.
MAIN PARTICULARS (Approx.)
Length Overall
: 99,40 m
LENGTH BETW. PERP.
: 93,70 m
Breath, MLD
: 17,2 m
Depth, MLD
: 10,50 m
DRAUGHT, DESIGN
: 6,90 m
Deadweight
: 5.300 DWT
Service Speed
: 14,1 knots
Complement
: 17
MACHINERY
Main Engine
: MAN 8L32/40
Power / RPM
: 4000 kW at 750 rpm
Specific Fuel Consumption
: abt.42700kj/kg
CONTROLLABLE PITCH PROPELLER
: abt.134rpm
Bow Thruster (KW)
: 390 kW
Power Supply Diesel Generators
: 3 x 585 kW
Emergency Diesel Generator
: 130kW
SHAFT ALTERNATOR
: abt. 1420 kVA
Voltage & Frequency of Vessel
: 440V & 60HZ
Cargo Pumping System
: 12 x abt. 150 m3/h, Electrically Driven Deepwell Pump CARGO
TANK CAPACITIES (Approx.)
Cargo Tank 1 P & STB
: 1063,7cbm
Cargo Tank 2 P & STB
: 1688cbm
Cargo Tank 3 P & STB
: 298,7cbm
Cargo Tank 4 P & STB
: 1053,3cbm
Cargo Tank 5 P & STB
: 1124,2cbm
Cargo Tank 6 P & STB
: 1140,7cbm
Total
: 6368,6cbm
Max. Cargo Density
: 1,86t/cbm
Other Tank Capacities (Approx.)
Heavy Fuel Oil
: 166,9cbm
Marine Diesel Oil
: 60,4cbm
Low Sulphur Oil
: 217,4cbm
LUBRICATION OIL
: 35,6cbm
Fresh Water
: 61,0cbm
Technical Fresh Water
: 123,0cbm
Bilge Water Holding
: 30,0cbm
Sludge Oil Tank
: 22,1cbm
Grey Water Tank
: 20,9cbm
Water Ballast
: 2209,8cbm
